O3/RSR-BCR工藝處理酸性紅73廢水

1. 文章信息

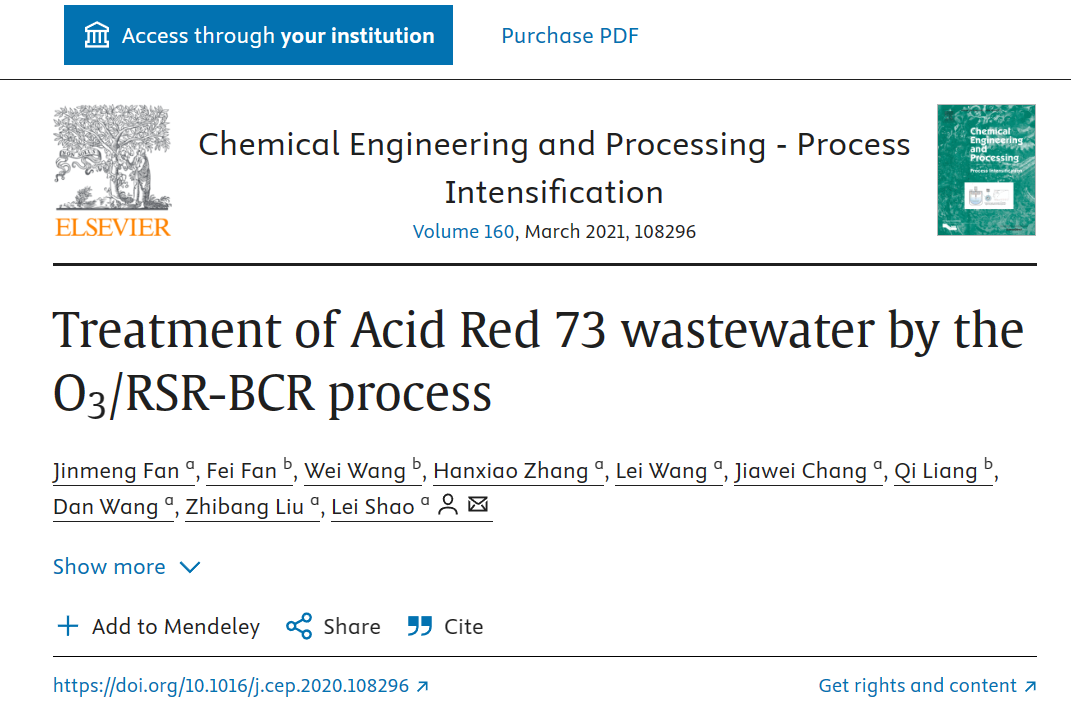

標題：Treatment of Acid Red 73 wastewater by the O3/RSR-BCR process

中文標題：O3/RSR-BCR工藝處理酸性紅73廢水

2. 文章鏈接

https://doi.org/10.1016/j.cep.2020.108296

3. 期刊信息

期刊名：Chemical Engineering and Processing - Process Intensification  Volume 160 , March 2021, 108296

涉及研究方向：化學工程

4. 作者信息：Jinmeng Fan a, Fei Fan b, Wei Wang b, Hanxiao Zhang a, Lei Wang a, Jiawei Chang a, Qi Liang b, Dan Wang a, Zhibang Liu a, Lei Shao a

aResearch Center of the Ministry of Education for High Gravity Engineering and Technology, Beijing University of Chemical Technology, Beijing 100029, China

bBeijing Water Business Doctor Co. Ltd., Beijing 100875, China

5.文中所用產品型號：3S-A10，3S-J5000

重點

?轉子-定子反應器(RSR)與氣泡柱反應器(BCR)耦合用于臭氧化。

?用于降解酸性紅73 (AR73)的O3/RSR-BCR工藝。

?AR73和COD的降解效率分別達到97%和30%以上。

?O3/RSR- bcr工藝的優勢在于RSR具有良好的傳質效果。

?通過自由基do和O3攻擊AR73中的偶氮顯色基團實現脫色。

摘要

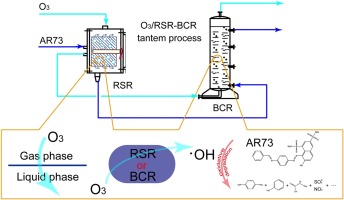

采用轉子-定子反應器(RSR)與泡柱反應器(BCR)串聯處理模擬印染廢水，提高臭氧氧化對酸性紅73 (AR73)的降解效果。結果表明，O3/RSR-BCR工藝對AR73和COD的降解效率分別達到97%和30%以上。由于RSR優良的傳質效果，O3/RSR-BCR工藝對AR73的降解效率顯著高于O3/BCR工藝，表現出由于液體停留時間縮短而降低臭氧消耗和減小BCR體積的效果。O3/RSR-BCR工藝處理AR73廢水的優勢在于RSR中O3的吸附效率高，BCR中O3與污染物的反應時間相對較長。結果表明，O3/RSR-BCR工藝是一種高效的印染廢水脫色技術。

Ozone equipment

The ozone generator (3S-A10, Tonglin Technology Co., LTD., China) generates ozone from the air, and the ozone concentration analyzer (3S-J5000, Tonglin Technology Co., LTD., China) monitors the concentration of gaseous ozone. The ozone-containing gas enters the RSR through the gas inlet and flows radially inward. When the O3 concentration in the airflow reaches a stable level, the AR73 solution is pumped into the RSR through the liquid inlet and flows radially outward under the action of the centrifugal force generated by the rotating rotor.
