Abstract

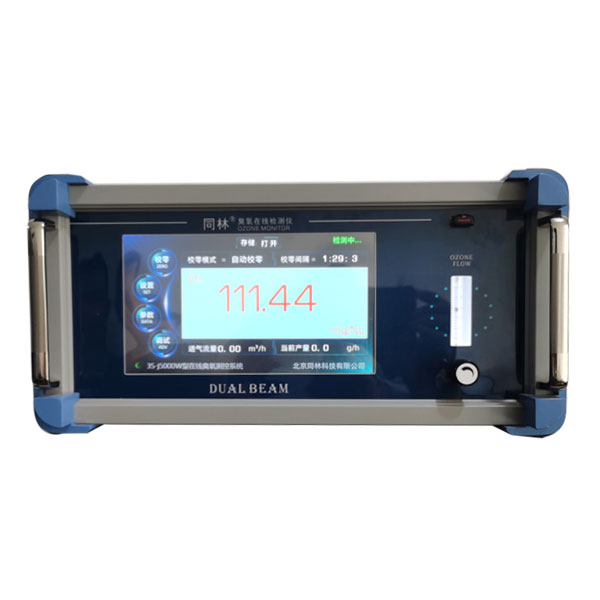

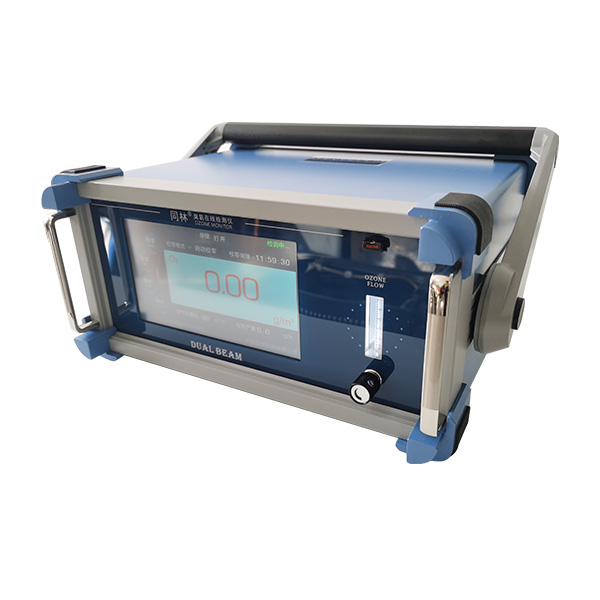

   The 3S-J5000 ozone online analyzer, based on Lambert-Beer's law, calculates the current ozone concentration value by measuring the change in the intensity of the optical signal before and after ozone's absorption of ultraviolet light. The 3S-J5000 model uses a dual-path ultraviolet light source system and can be set for automatic zeroing or manual zeroing. It automatically zeros upon startup. According to the measurement duration, the automatic zeroing time can be set. It is equipped with an intelligent lamp tube management system. After being turned on, the ultraviolet lamp tube can quickly reach the measurement state. It adopts the German split light cell technology. The equipment features no leakage, high pressure resistance, resistance to large flow sampling gas impact, easy cleaning, convenient maintenance, simple operation and low usage cost。

      Application

    Ozone generator manufacturers, municipal water supply industry, industrial wastewater industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and other industries that use ozone generators.

      Parameter

1. Detection principle: Dual-path ultraviolet absorption method

2. Ozone detection range: 0-200 mg/L (Optional: 0-100mg/L, 0-50 mg/L, 0-30 mg/L)

3. Resolution: ≤ 0.01 mg/L;

4. Measured object: Gaseous ozone;

5. Input ozone flow rate: ≤ 1 L/min;

6. Zero drift: < 0.3% FS;

7. Response time: <2 seconds;

8. Detection accuracy: 0.3%FS

9. Power Supply: 220V

10. Signal output: 4-20 ma; RS485;

11. Power: ≤180W;

12. Installation method: Wall-mounted/desktop;

13. Nominal working pressure: ≤0.1MPa (When measuring high-pressure ozone, parallel measurement must be carried out to ensure that the measurement outlet end is completely drained).

14. Sampling port pipe diameter: Φ8 (8mm * 6mm)

15. Weight: 6.5 ± 0.5 kg

16. Dimensions: ≤ 355*295*175mm; ;

17. Touchscreen control

18. Working environment temperature: -10 to 40 ℃;

19. Sampling method: Positive pressure;

20. Zero calibration method: Automatic zero calibration of the catalyst; Zero calibration is allowed when ozone is passed through.

21. With storage function; The signal of the ozone mass flowmeter can be connected.

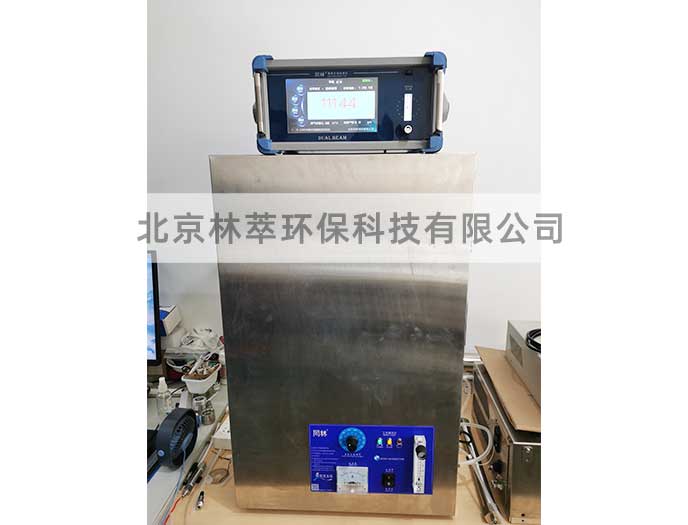

Case

For more cases, please check the on-site cases section
